temperature sensor
Time: 2018-02-10 17:03:20 Hits:
1.Application
◆refrigerator
◆Quick frozen cooler.
◆air conditioning system
◆Floor heating
2.character

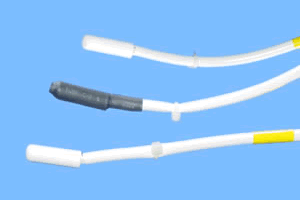

◆It is made up of thermistor inside the plastic shell.
◆Use PVC insulated cable connection, the highest heat resistance: 105 ℃
◆ Cross sectional area of lead wire: 2 x 0.34mm2.
3.custom-made
Design resistance value, rated temperature, resistance tolerance and cable length according to customer requirements.

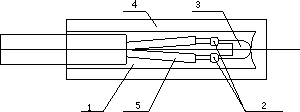

1：epoxy resin
2：Soldering
3：thermistor
4：housing
5：lead wire
| 25 ℃ maximum power consumption | P25 | 350mW |
| The resistance tolerance | R/RN | ±2% |
| B value of tolerance | B/B | ±1.5% |
| The coefficient of consumption in the air. | th | 10mW/K |
| insulation resistance | Ris | 1000MΩ |
