Toilet heater

1.Application
Applicable to the rated voltage of 250V, 50-60hz, the power is customized according to the customer, mainly aiming at the seat ring insulation function of the smart toilet, so that the toilet seat is kept comfortable at all times.

2.Structure characteristi
heat with high quality nickel chrome wire of high-speed winding is uniformly distributed in the glass fiber on the inner core, repass is attach full automatic production line of PVC protection shell. Add lines and adhesive between the aluminum foil, high-temperature thermal bonding, opposite joint double-sided tape is easy to install and fixed. At the same time connect the fuse, once the temperature is too high, automatic power off protection

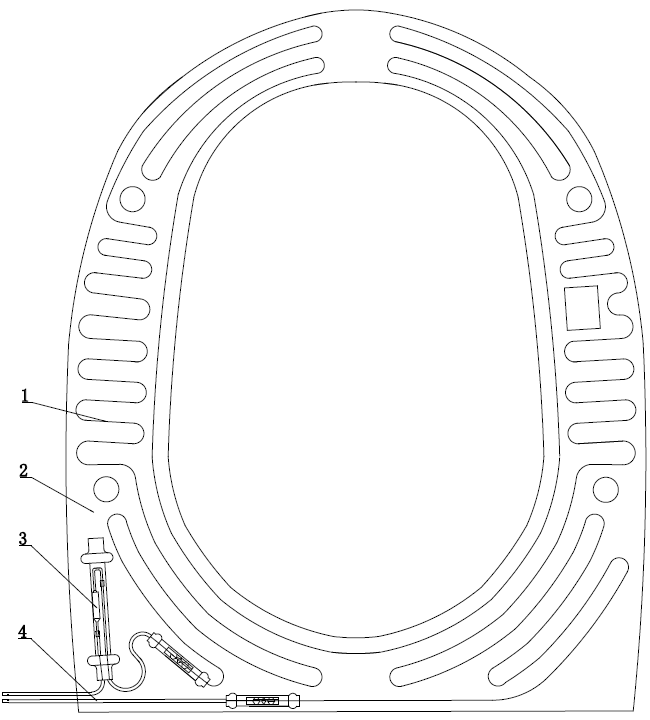

1.PVC heating wire
2.aluminum foil
3.fuse
4.lead wire
