Tubular Heater Series for Air Conditioning Equipment
Time: 2018-02-10 15:00:05 Hits:
Product Presentation:
The air conditioning heater series is used for auxiliary heating of various air conditioners and the heater is mainly composed of a heating pipe, a fixing bracket, thermostat, thermal fuse and protective net cover and other parts, and in which the heating element is made by the high quality stainless steel as the cover and the high resistance nichrome wire as the heating material and the fused magnesia powder as the insulating medium and through the advanced production technology with its electrical performance index much higher than the industry standard and its product quality much improved than the domestic level of the same industry.

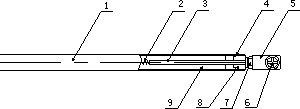

The Structure and Shape
1: heating tube- stainless steel tube
2: heating wire- Chromium iron wire
3: conducting bar- stainless steel tube
4: sealant- silicone rubber
5: insert-stainless steel
6: screw- stainless steel
7: nut-stainless steel
8: magnetic bead
9: magnesium powder

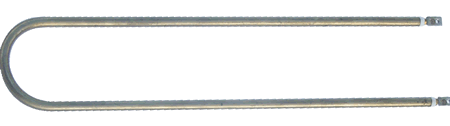

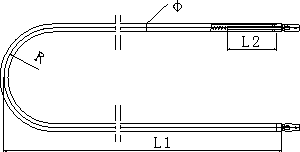

U shaped electric heating tube
Product Technical Parameters
| dimension | specification range(mm) | voltage(v) | power(w) |
| L1 | 250~600 | 73.3 | 333~833 |
| L2 | 30~80 | 110 | 500~750 |
| R | 15~60 | 220 | 1000~1500 |
| Φ | 6.0~10.5 | 230 | 1000~1500 |

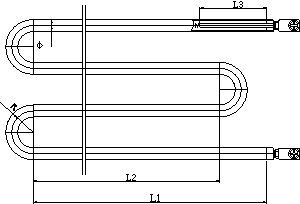

B.W shaped electric heating tube
Product Technical Parameters
| dimension | specification range(mm) | voltage(v) | power(w) |
| L1 | 250~600 | 73.3 | 500~833 |
| L2 | 210~550 | 220 | 700~833 |
| L3 | 30～80 | 1000～1167 | |
| R | 15~30 | ||
| Φ | 6.0~10.5 |
curved shape electric heating tube products structure
Product Technical Parameters
voltage: 220V
power: 1000~1500W
Can design various shapes and dimensions according to user requirements
