Tubular Heater Series for Water Heater

Product Presentation:

This series of heaters are used in the water heater heating water and designed into the heaters with various specifications and sizes according to user requirements. The products have been through the strict safety performance test and immersion pressure test, safe for use, reliable in performance and durable.
The heaters are the heating elements made the high quality stainless steel pipe, alloy heating wire, fused magnesia powder and other materials through the advanced production technology, such as winding, shrinking tube, humidity discharge, sealing and so on; The connection of the flanges and heating pipes uses the argon arc welding and vacuum brazing to ensure no leakage of the heater under high pressure.
The heaters can be designed into the double power tube and single power tube according to the requirements of users. The double power tube is composed of two single tubes parallel and the water heaters contain two kinds of power for use which is very convenient.

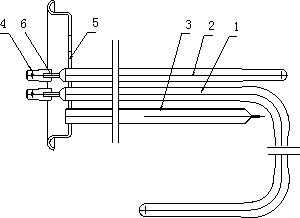

The Structure and Shape
1. stainless steel tube 800
2. stainless steel tube 800
3. sensitive heating pipe
4. insert
5. flange
6. lead bar


Product Technical Parameters
Power: 0.5KW~5KW
Insulation resistance (Cold conditions): ≥1000MΩ
Withstand flooding pressure: ≥1.2Mpa
Voltage resistance (Cold conditions)：≥2000V/S (5mA)
Leakage current (working condition): ≤0.3mA
